Ultrasonic Homogenizers - Micro Tips
Visit UltrasonicHomogenizer.com for a dedicated site to Ultrasonic Homogenizers
| Models | Tips and Accessories | Application Notes | Published Papers |
| Micro Tips | Solid Tips | Tapped Tips | Extender Tips | Replaceable Flat Tips |
| Cup Tips | Continuous Flow Chamber | Sound Abating Chamber |
Micro Tips are long and narrow to generate high intensity cavitation for processing small sample volumes.
The Stepped Micro Tip is coupled directly to the Transducer.

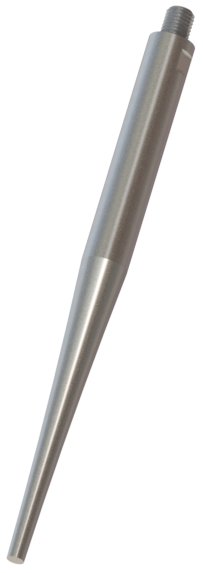

The Tapered Micro Tips are attached to the 12.7 mm Tapped Tip (Catalog No. 0-120-0010) then coupled to the Transducer.
| STEPPED MICRO TIP | TAPERED MICRO TIPS | |||
 |
 |
 |
||
| CATALOG NO. | 0-120-0005 | 0-120-0007 | 0-120-0008 | |
| TIP DIAMETER | 3.8 mm | 3.2 mm | 4.8 mm | |
| PROCESSING VOLUME | 300 µl - 15 ml | 250 µl - 10 ml | 750 µl - 25 ml | |
| INTENSITY | VERY HIGH | VERY HIGH | HIGH | |
| AMPLITUDE (MICRONS) | 210 | 230 | 190 | |
| AMPLITUDE CONTROL | 50% | 50% | 50% | |
| TIP LENGTH | 256 mm | 159 mm | 104 mm | |
| TYPE | STEPPED | TAPERED | TAPERED | |
| REQUIRES | N/A | 0-120-0010 | 0-120-0010 | |
 |
 |
|||

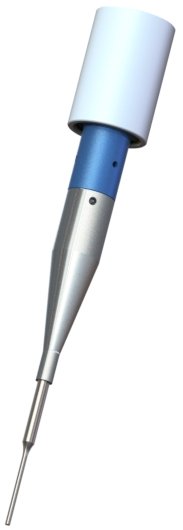

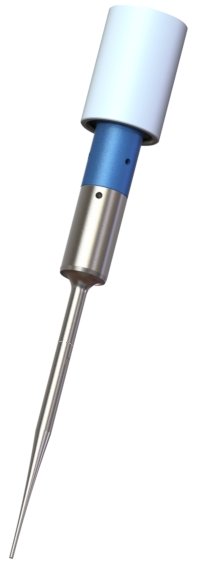

| 0-120-0005 SHOWN ATTACHED TO TRANSDUCER | 0-120-0007 SHOWN ATTACHED TO 12.7 MM TAPPED TIP (0-120-0010) AND TRANSDUCER | |||
| Buy Online | Locate a Distributor | Request Literature |
Ultrasonic Homogenizer Names
Sometimes referred to as, Sonicator, Cell Disrupter or Cell Disruptor, Sonifier®, Probe Sonicator, Sonic Dismembrator, and Ultrasonic Liquid Processor
Sonifier is a registered trademark of Branson Ultrasonics Corporation
