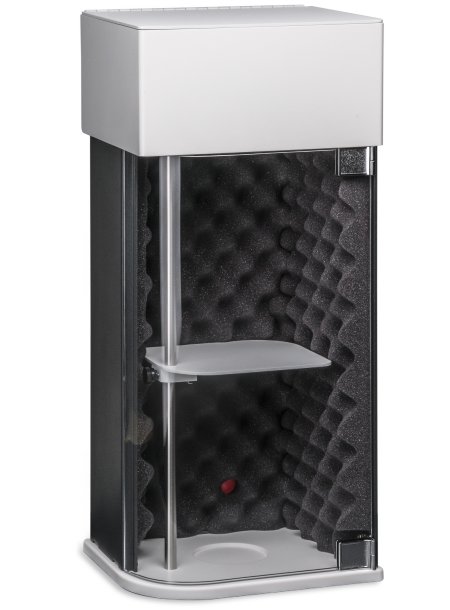

The SONABOX reduces cavitational sound emitted during processing when using the Model 150VT or 300VT Ultrasonic Homogenizer.
Harmonics are produced by the vessel walls and fluid surface that can be discomforting to the operator with extended operation. The SONABOX reduces the harmonics by approximately 20-25 dB.
The clear acrylic door permits viewing of the sample while protecting the operator against accidental splashing.
The rear access port is utilized for tubing and cabling when processing samples with the Cup Tip or Continuous Flow Chamber.
The height of the sample table can be adjusted to vessel size and shape.
SONABOX Includes |
• SONABOX Sound Abating Chamber • 2 Year Warranty |
Upper Compartment

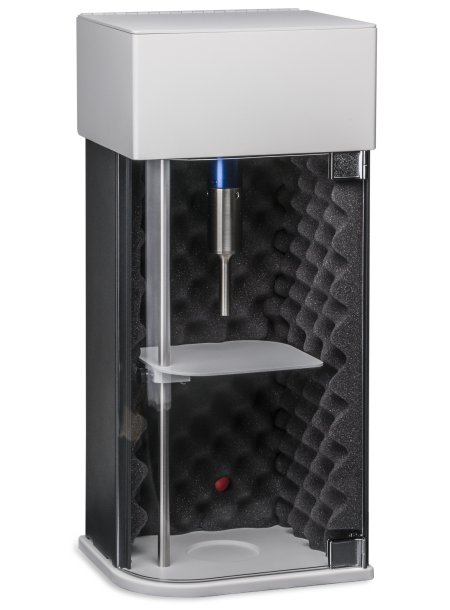

The upper compartment houses the Transducer when utilizing any of the Titanium Tips with the exception of the Cup Tip. The rear access port allows the Transducer cable to exit and connect to the Ultrasonic Homogenizer.
Lower Compartment

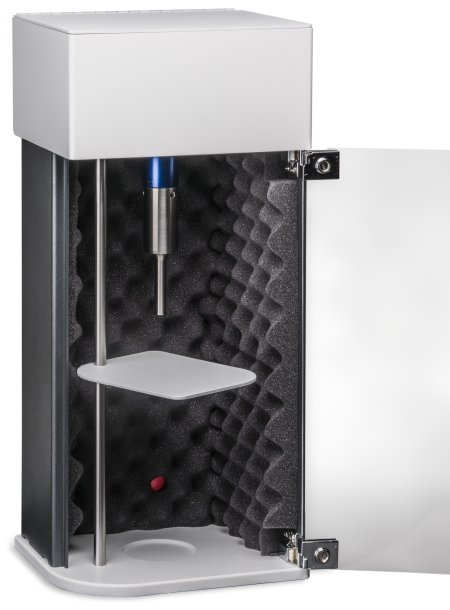

The clear door permits viewing of the sample, while protecting the operator from accidental slashing and reduces the sound being emitted.
The rear access port allows the Transducer cable to exit and connect to the Ultrasonic Homogenizer when the Cup Tip is utilized. The port can also be used with the Continuous Flow Chamber, allowing the sample and cooling tubing to connect to external circulation pumps.
RoHS compliant
All BioLogics instrument are built lead free.
Description | Catalog No. |
SONABOX | 0-125-0001 |
Features | |
Sample Table | Adjustable Height |
Door | Clear Acrylic |
Access Port | (2) Upper and Lower Compartment |
Dimensions | |
Outside | 10.5 in W x 8.5 in D x 23.5 in H 26.7 cm W x 21.6 cm D x 59.7 cm H |
Inside | 9.75 in W x 7.75 in D x 17.75 in H 24.8 cm W x 19.7 cm D x 45.1 cm H |
Ultrasonic Homogenizer Names Sonifier is a registered trademark of Branson Ultrasonics Corporation |
|
