Ultrasonic Homogenizers - Tapped Tips

Visit UltrasonicHomogenizer.com for a dedicated site to Ultrasonic Homogenizers

| Models | Tips and Accessories | Application Notes | Published Papers |

| Micro Tips | Solid Tips | Tapped Tips | Extender Tips | Replaceable Flat Tips |
| Cup Tips | Continuous Flow Chamber | Sound Abating Chamber |

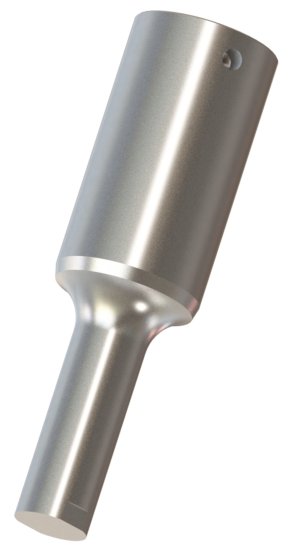

Tapped Tips are a 2 piece design comprised of the Body and Flat Tip, both manufactured from a titanium alloy and machined to a specific shape and diameter.

The Body has a threaded end allowing the Flat Tip to be replaced. The Flat Tip or radiating face will erode with use and should be replaced when worn. Probe performance degrades in proportion to the degree of erosion which occurs at the tip surface and will reach a point where the level of energy transmitted to the sample is significantly lessoned.

Tapped Tips are NOT recommended when processing liquids containing organic solvents or low surface tension samples.

CATALOG NO.	0-120-0010	0-120-0012	0-120-0014
TIP DIAMETER	12.7 mm	19.1 mm	25.4 mm
PROCESSING VOLUME	10 ml - 300 ml	25 ml - 600 ml	50 ml - 2000 ml
INTENSITY	MED-HIGH	MEDIUM	LOW
AMPLITUDE (MICRONS)	140	70	40
AMPLITUDE CONTROL	100%	100%	100%

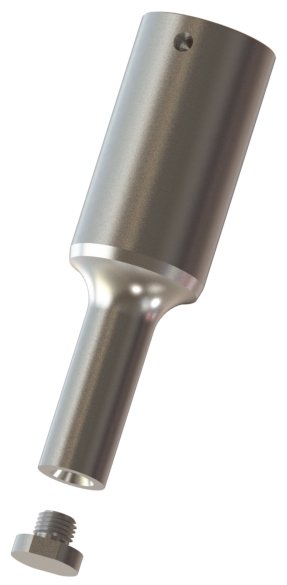

TIP LENGTH	137 mm	130 mm	127 mm	19.1 mm TAPPED TIP SHOWN WITH FLAT TIP DETACHED
TYPE	TAPPED	TAPPED	TAPPED
INCLUDES FLAT TIP	0-120-0016	0-120-0017	0-120-0018

Buy Online

Locate a Distributor

Request Literature

Ultrasonic Homogenizer Names
Sometimes referred to as, Sonicator, Cell Disrupter or Cell Disruptor, Sonifier®, Probe Sonicator, Sonic Dismembrator, and Ultrasonic Liquid Processor

Sonifier is a registered trademark of Branson Ultrasonics Corporation
