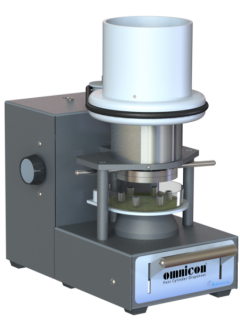

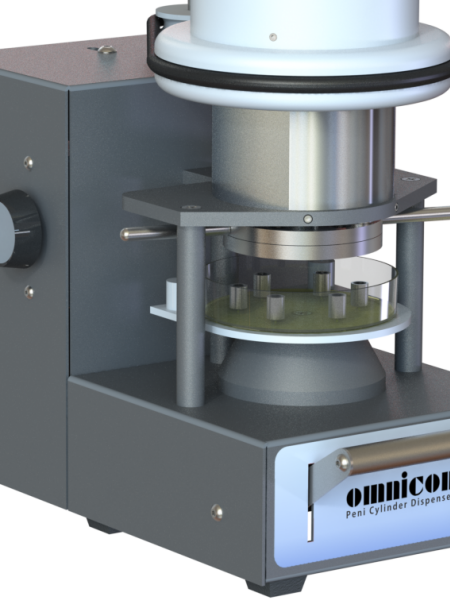

Peni Cylinder Dispenser with motorized Hopper

Visit OmniconZoneReader.com for a dedicated site to Antibiotic Potency Testing

|Peni Cylinder Dispenser with Hopper|Peni Cylinder Dispenser with Motorized Hopper|
Flat Peni Cylinders|Chamfered Peni Cylinders|

Peni Cylinder Dispensers are utilized to dispense Flat or Chamfered Face Peni Cylinders onto petri dishes when performing Antibiotic Potency Testing - Antibiotic Microbial Assays - Agar Diffusion Bioassays - Zones of Inhibition Assays.

The Peni Cylinder Dispenser with Motorized Hopper has a capacity of 600 Peni Cylinders for medium to high sample throughput. With a single pull of the lever, 4 or 6 Peni Cylinders are dispensed simultaneously onto a round petri dish from a precise drop height and orientation.

The Peni Cylinder Dispenser with Motorized Hopper can be easily and quickly disassembled for autoclave disinfection.















Peni Cylinder Dispenser with Motorized Hopper Includes

• Dispenser w/Motorized Hopper
• Hole Plugs used to configure 4 or 6 Peni Cylinder Dispensing
• User Reference Manual
• IQ/OQ/PQ Validation Manual
• Power Cord
• Hex Allen Wrench
• 1 Year Warranty

Dispense Configuration
Using the Hole Plugs, the dispenser can be configured to dispense either 4 or 6 Peni Cylinders simultaneously onto a round petri dish.

Motorized Hopper
The motorized hopper has a capacity of 600 Peni Cylinders for medium to high sample throughput. The rotating speed of the hopper can be adjusted to ensure the dispenser is ready to dispense Peni Cylinders consistently.

Disinfecting
Disinfecting or autoclaving the dispenser is easily accomplished. Remove the hopper from the dispenser body, then remove the dispense body from the instrument base. With the dispense body removed, disinfecting is made simple.

Peni Cylinders
Use either Flat Face Peni Cylinders or Chamfered Face (beveled) Peni Cylinders.

RoHS compliant
All BioLogics instruments are built lead free.

Description Catalog No.

Peni Cylinder Dispenser
with Motorized Hopper
(120-230V/50-60Hz)

0-144-0003

Features
Hopper Type Motorized
Hopper Capacity 600 Peni Cylinders
Peni Cylinder Types Flat or Chamfered Face

Dimensions
Peni Cylinder Dispenser
with Hopper
7.3 in W x 12.3 in D x 13.0 in H
18.5 cm W x 31.2 cm D x 33.0 cm H






Flat Face Peni Cylinders

Chamfered Face Peni Cylinders

























Ultrasonic Homogenizer Sonicator Cell Disrupter Cell Disruptor Sonifier

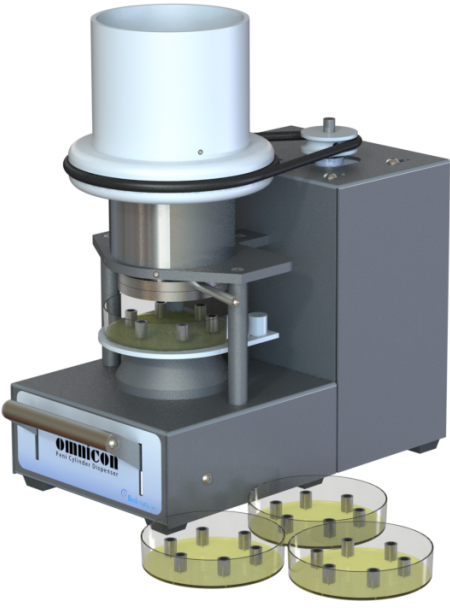

Shown with plastic disposable petri dishes
  • Sonifier Sonic Dismembrator Probe Sonicator Ultrasonic Liquid Processor
  • Ultrasonic Homogenizer Sonicator Cell Disrupter Cell Disruptor Sonifier
  • Sonifier Sonic Dismembrator Probe Sonicator Ultrasonic Liquid Processor



Peni Cylinder Dispensers - Made in USA
