USP/CFR/AOAC Antibiotic Potency Testing - banner

OMNICON Zone Reader - United States Pharmacopoeia (USP) - CFR - AOAC
Antibiotic Potency Testing

Visit OmniconZoneReader.com for a dedicated site to Antibiotic Potency Testing

| OMNICON Zone Reader | USP/CFR/AOAC Antibiotic Method |
| EP/EP Antibiotic Method | JP Antibiotic Method |

The OMNICON USP Zones of Inhibition software performs all calculations in accordance to the procedures defined in the Code of Federal Regulations Standard (CFR) 436.105 as well as in the Section of Design and Analysis of Biological Assays <111>, Chapter of Biological Tests, United States Pharmacopoeia (USP). The software calculates the mean and standard deviation values, excludes zones based on the USP Outlier Test and draws the Zones of Inhibition potency line graph for the Standard Analysis. It also calculates the differences between the reference assay and the sample test assay; obtain the mean and standard deviation of these differences, calculate the label claim percentage and the determined potency value for the Trial Analysis, or the Trial analysis results based on weight and dilution.

Plate Reading

The OMNICON Zones Reader reads each 100 mm petri dish with 6 zones in less than 3/10th of a second, measuring the diameter and shape of the zone. The shape value can be used to exclude zones which are oval due to spills or irregular growth.

21 CFR, Part 11, Electronic Records and Signatures

The OMNICON USP/CFR/AOAC Zones of Inhibition software is compliant, providing three levels of security, audit trails and data encryption.

Assay Layout

Zones of Inhabition Petri Dish Zones of Inhabition Petri Dish Zones of Inhabition Petri Dish

3 Point Assay
3 Concentrations - A,B & C or S1, S2 & S3

3 Plates per set - User can define up to 9 plates per set

User defined Concentration Levels

4 Point Assay
4 Concentrations - A,B,C & D or S1, S2, S3 & S4

3 Plates per set - User can define up to 9 plates per set

User defined Concentration Levels

5 Point Assay
5 Concentrations - A,B,C,D & E or S1, S2, S3, S4 & S5

3 Plates per set - User can define up to 9 plates per set

User defined Concentration Level

Standard Curve Report

USP - CFR_ AOAC Standard Report, Antibiotic Potency

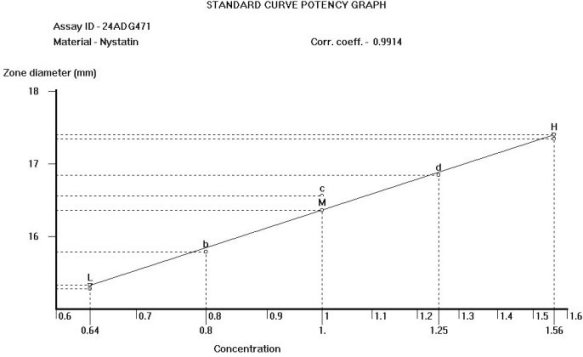

Standard Curve Graph

USP - CFR_ AOAC Standard Curve Graph, Antibiotic Potency

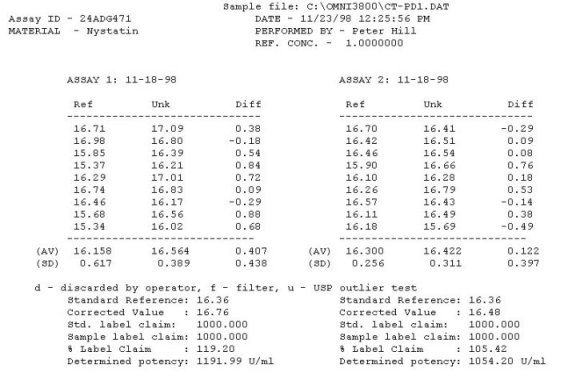

Trial (Sample) Report

USP - CFR_ AOAC Trial (Sample) Report, Antibiotic Potency

References

United States Pharmacopeia (USP)
US-FDA Code of Federal Regulations (CFR)
Association of Analytical Communities (AOAC International)
British Pharmacopeia (BP)
European Pharmacopoeia (EP)
Society of Japanese Pharmacopeia (JP)
