Ultrasonic Homogenizers - Solid Tips
Visit UltrasonicHomogenizer.com for a dedicated site to Ultrasonic Homogenizers
| Models | Tips and Accessories | Application Notes | Published Papers |
| Micro Tips | Solid Tips | Tapped Tips | Extender Tips | Replaceable Flat Tips |
| Cup Tips | Continuous Flow Chamber | Sound Abating Chamber |
Solid Tip should be utilized when processing liquids containing organic solvents or low surface tension samples.

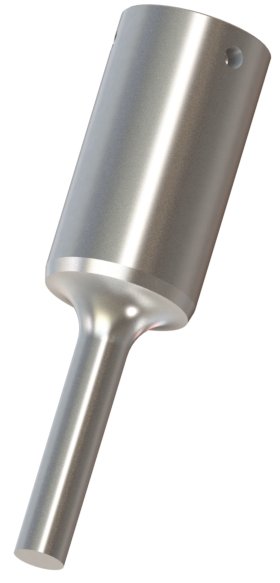

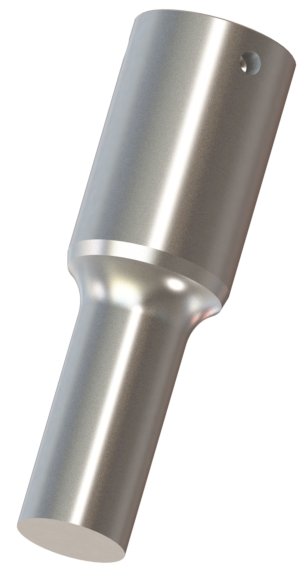

Solid Tip probes are machined from one solid titanium piece and less likely to cause sample cross contaminations.
 |
 |
 |
 |
|
| CATALOG NO. | 0-120-0009 | 0-120-0011 | 0-120-0013 | 0-120-0015 |
| TIP DIAMETER | 9.5 mm | 12.7 mm | 19.1 mm | 25.4 mm |
| PROCESSING VOLUME | 5 ml - 200 ml | 10 ml - 300 ml | 25 ml - 600 ml | 50 ml - 2000 ml |
| INTENSITY | HIGH | MED-HIGH | MEDIUM | LOW |
| AMPLITUDE (MICRONS) |
160 | 140 | 70 | 40 |
| AMPLITUDE CONTROL | 80% | 100% | 100% | 100% |
| TIP LENGTH | 108 mm | 137 mm | 103 mm | 127 mm |
| TYPE | SOLID | SOLID | SOLID | SOLID |
| Buy Online | Locate a Distributor | Request Literature |
Ultrasonic Homogenizer Names
Sometimes referred to as, Sonicator, Cell Disrupter or Cell Disruptor, Sonifier®, Probe Sonicator, Sonic Dismembrator, and Ultrasonic Liquid Processor
Sonifier is a registered trademark of Branson Ultrasonics Corporation
