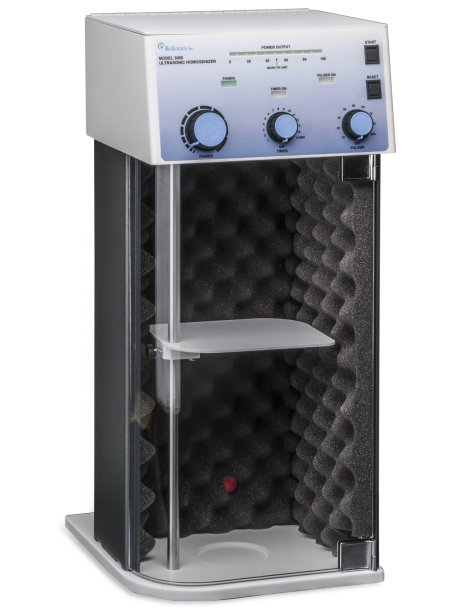

The Model 3000 Ultrasonic Homogenizer delivers up to 300 watts of ultrasonic disruption with analog controls for superior sample processing.
The integrated Sound Abating Chamber reduces cavitational sound emitted during sample processing. The clear door permits viewing of the sample while processing. An access port for cables and tubing is also provided for use with the Cup Tip or the Continuous Flow Chamber.
The Model 3000 offers all the advanced engineering features necessary to create a total system for ultrasonic disruption. The compact vertical footprint is ideal for processing samples with volumes less than 250 μl with the Cup Tip and volumes ranging from 250 μl to 2000 ml with a wide selection of titanium tips.
Titanium tip selection is determined by sample volume. Titanium tips have recommended sample processing volumes. Use the follwing guides for titanium tip selection:
|Model 3000 Includes|
• Integrated Sound Chamber

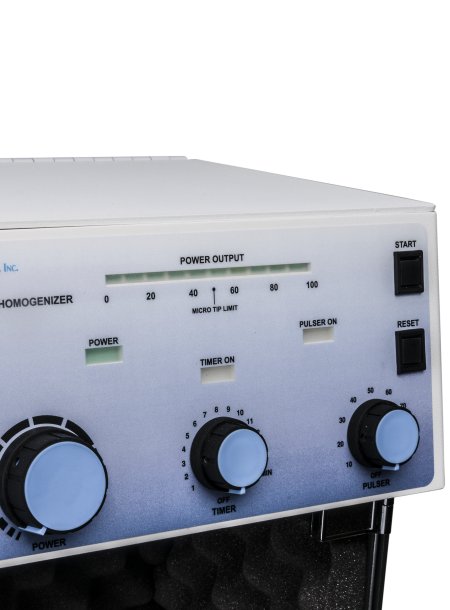

With 0-100% Amplitude (Power) control, the operator can optimize the titanium tip’s intensity to efficiently process the sample. The amplitude percentage is reflected by the output meter, enabling accurate, reproducible results.
Timer and Pulser Controls
The Timer and Pulser functions increase precision to disintegrate most cells, bacteria, spores or tissue. Prepare emulsions down to 1/100 of a micron, homogenize “immiscible” liquids, accelerate enzymatic and chemical reactions, stimulate bacterial activity, disperse solids in liquids and degas liquids.
The Auto Tuning feature employs a proprietary feedback system, insuring that the power output and titanium tip are always working at maximum efficiency regardless of the application.
The upper compartment houses the Transducer when utilizing any of the Titanium Tips with the exception of the Cup Tip. The rear access port allows the Transducer cable to exit and connect to the power supply.
The clear door permits viewing of the sample, while protecting the operator from accidental slashing and reduces the sound being emitted.

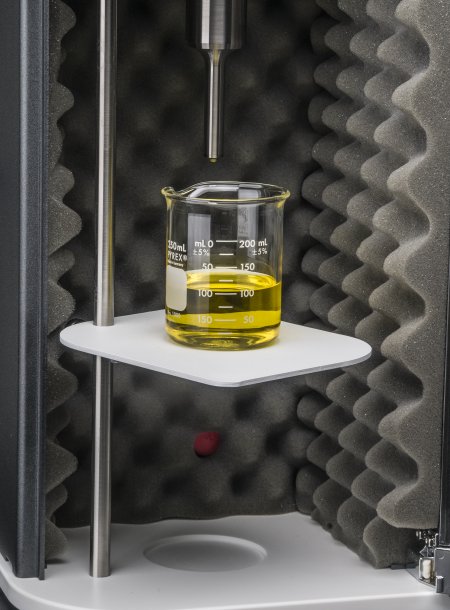

The adjustable sample table allows the operator to change the height of the table so that the Titanium Tip can be submerged into the sample at an optimal position.
All BioLogics instrument are built lead free.
|Model 3000, 115V/60Hz||0-127-0001|
|Model 3000, 230V/50Hz||0-127-0002|
|Processing Volume||Less than 250 μl with Cup Tip|
|Processing Volume||250 μl to 2000 ml with Titanium Tip|
|Maximum Tip Diameter||25.4 mm or Cup Tip|
|Power Output||0-300 Watts|
|Output Frequency||20 kHz|
|Pulser||10 to 90% of 2 seconds|
|Timer||1 to 15 minutes or continuous|
|Generator||10.5 in W x 12.0 in D x 23.5 in H
26.7 cm W x 30.6 cm D x 59.7 cm H
|Inside Lower Compartment||9.75 in W x 7.75 in D x 17.75 in H
24.8 cm W x 19.7 cm D x 45.1 cm H
|Transducer||2.5 in Dia. x 4.0 in L
6.4 cm Dia. x 10.2 cm L
