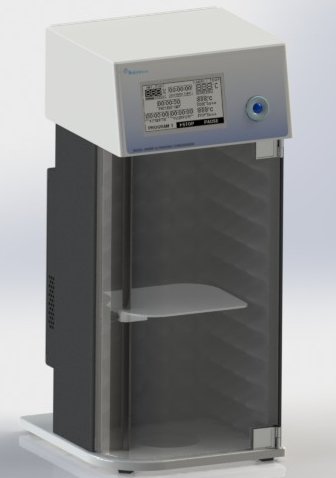

Model 3000MP Ultrasonic Homogenizer

The Model 3000MP Ultrasonic Homogenizer delivers up to 300 watts of ultrasonic disruption with precision control from a microprocessor and a graphical user interface displayed on a large LCD display.

The integrated Sound Abating Chamber reduces cavitational sound emitted during sample processing. The clear door permits viewing of the sample while processing. An access port for cables and tubing is also provided for use with Cup Tips and the Continuous Flow Chamber.

The microprocessor driven graphical user interface with large LCD display provides intuitive controls and a user friendly experience. This model utilizes an auto tuning feature with proprietary feedback circuitry insuring that the titanium tip intensity is always working at maximum efficiency regardless of the application.

The Model 3000MP offers all the advanced engineering features necessary to create a total system for ultrasonic disruption. The compact vertical footprint is ideal for processing samples with volumes less than 250 μl with the Cup Tip and volumes ranging from 250 μl to 2000 ml with a wide selection of titanium tips.

Titanium tip selection is determined by sample volume. Titanium tips have recommended sample processing volumes. Use the follwing guides for titanium tip selection:

• Sample volumes less than 250 μl - Cup Tip
• Sample volumes 250 μl to 25 ml - Small Volume Interactive Titanium Tip Map
• Sample volumes 250 μl to 2000 ml - Medium to Large Volume Interactive Titanium Tip Map

Model 3000MP Includes

• Integrated Sound Chamber • Adjustable Height Sample Table • Transducer • Pair of Pin Wrenches • Power Cord • User Reference Manual • 2 Year Warranty

Manual Mode
The operator defines the AMPLITUDE, can enable the PULSER feature, and monitor sample temperature during processing.

Program Mode
The operator can define, store, and recall up to 10 programs. Within each PROGRAM, the AMPLITUDE, PULSER parameters, TEMPERATURE settings for COOL DOWN and SHUT DOWN temperatures, can be defined and stored.

Macro Mode
The operator can define a macro of up to 5 sequences, using any of the 10 stored PROGRAMS with an optional time delay, from 1 second to 99 minutes, between each sequence.

Temperature Controller
With the optional temperature probe, the operator has the ability to monitor sample temperature during sample processing. The operator defined temperature window prevents the sample from overheating.

Upper Compartment
The upper compartment houses the Transducer when utilizing any of the Titanium Tips with the exception of the Cup Tip. The rear access port allows the Transducer cable to exit and connect to the power supply.

Lower Compartment
The clear door permits viewing of the sample, while protecting the operator from accidental slashing and reduces the sound being emitted.

The adjustable sample table allows the operator to change the height of the table so that the Titanium Tip can be submerged into the sample at an optimal position.

RoHS compliant
All BioLogics instrument are built lead free.

Voltage	Catalog No.
Model 3000MP, 115V/60Hz	0-128-0001
Model 3000MP, 230V/50Hz	0-128-0002
Features
Processing Volume	Less than 250 μl with Cup Tip
Processing Volume	250 μl to 2000 ml with Titanium Tip
Maximum Tip Diameter	25.4 mm or Cup Tip
Power Output	0-300 Watts
Output Frequency	20 kHz
Amplitude Control	0-100%
Automatic Tuning	Yes
Microprocessor Control	Yes
Pulser	1 to 59 seconds
Timer	1 second to 99 minutes
Temperature Controller	32 to 212 °F (0 to 100 °C)
Temperature Probe	Optional
Sound Chamber	Integrated
Display	LCD
Dimensions
Generator	10.5 in W x 12.0 in D x 23.5 in H 26.7 cm W x 30.6 cm D x 59.7 cm H
Inside Lower Compartment	9.75 in W x 7.75 in D x 17.75 in H 24.8 cm W x 19.7 cm D x 45.1 cm H
Transducer	2.5 in Dia. x 4.0 in L 6.4 cm Dia. x 10.2 cm L

List of all Tips and Accessories

Titanium Micro Tips

Titanium Solid Tips

Titanium Tapped Tips

Titanium Extender Tips

Titanium Cup Tip

Continuous Flow Chamber
