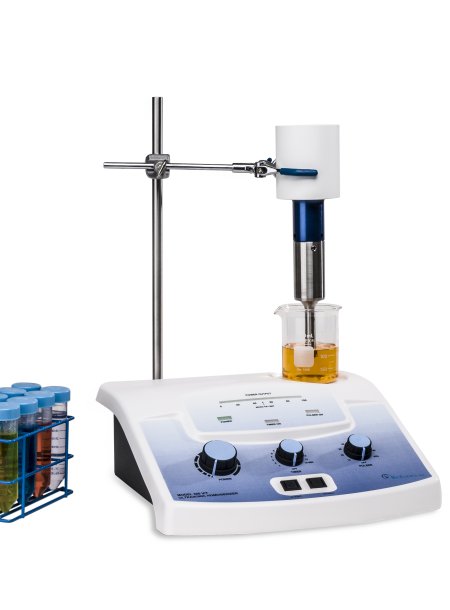

Model 300VT Ultrasonic Homogenizer

The Model 300VT Ultrasonic Homogenizer delivers up to 300 watts of ultrasonic disruption with analog controls for superior sample processing.

The Model 300VT offers all the advanced engineering features necessary to create a total system for ultrasonic disruption. The compact footprint is ideal for processing samples with volumes less than 250 μl with the Cup Tip and volumes ranging from 250 μl to 2000 ml with a wide selection of titanium tips.

Titanium tip selection is determined by sample volume. Titanium tips have recommended sample processing volumes. Use the following guides for titanium tip selection:

• Sample volumes less than 250 μl - Cup Tip
• Sample volumes 250 μl to 25 ml - Small Volume Interactive Titanium Tip Map
• Sample volumes 250 μl to 2000 ml - Medium to Large Volume Interactive Titanium Tip Map

To help reduce the cavitational sound emitted during sample processing, use the SONABOX Sound Abating Chamber.

Model 300VT Includes

• Generator • Transducer • Stainless Steel Transducer Post • Transducer 3 Prong Clamp • Post Clamp • Pair of Pin Wrenches • Power Cord • User Reference Manual • 2 Year Warranty

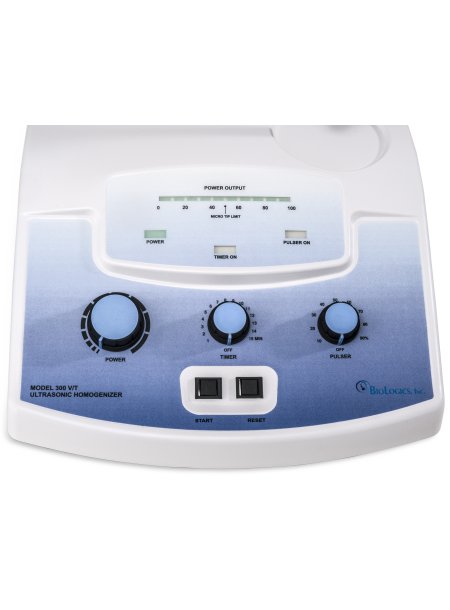

Amplitude Control
With 0-100% Amplitude (Power) control, the operator can optimize the titanium tip’s intensity to efficiently process the sample. The amplitude percentage is reflected by the output meter, enabling accurate, reproducible results.

Timer and Pulser Controls
The Timer and Pulser functions increase precision to disintegrate most cells, bacteria, spores or tissue. Prepare emulsions down to 1/100 of a micron, homogenize “immiscible” liquids, accelerate enzymatic and chemical reactions, stimulate bacterial activity, disperse solids in liquids and degas liquids.

Auto Tuning
The Auto Tuning feature employs a proprietary feedback system, insuring that the power output and titanium tip are always working at maximum efficiency regardless of the application.

RoHS compliant
All BioLogics instrument are built lead free.

Voltage	Catalog No.
Model 300VT, 115V/60Hz	0-122-0001
Model 300VT, 230V/50Hz	0-122-0002
Features
Processing Volume	Less than 250 μl with Cup Tip
Processing Volume	250 μl to 2000 ml with Titanium Tip
Maximum Tip Diameter	25.4mm or Cup Tip
Power Output	0-300 Watts
Output Frequency	20 kHz
Amplitude Control	0-100%
Automatic Tuning	Yes
Pulser	10 to 90% of 2 seconds
Timer	1 to 15 minutes or continuous
Microprocessor Control	No
Power Meter	LED
Sound Abating Chamber	Optional
Dimensions
Generator	12.0 in W x 10.0 in D x 4.0 in H 30.5 cm W x 25.4 cm D x 10.2 cm H
Transducer	2.5 in Dia. x 4.0 in L 6.4 cm Dia. x 10.2 cm L

List of all Tips and Accessories

Titanium Micro Tips

Titanium Solid Tips

Titanium Tapped Tips

Titanium Extender Tips

Titanium Cup Tip

Continuous Flow Chamber

SONABOX Sound Abating Chamber
